การใช้งาน เครื่องปิดกล่องด้วยเทปกาว รุ่น FXJ5050B ใช้สำหรับปิดปากกล่องลูกฟูก กล่องไปรษณีย์ เป็นระบบกึ่งอัตโนมัติปิดบน-ล่างพร้อมกัน หรือใช้อย่างใดอย่างหนึ่งก็ได้ ทำงานรวดเร็วประหยัดแรงงานและเวลา
รายละเอียดการใช้งาน

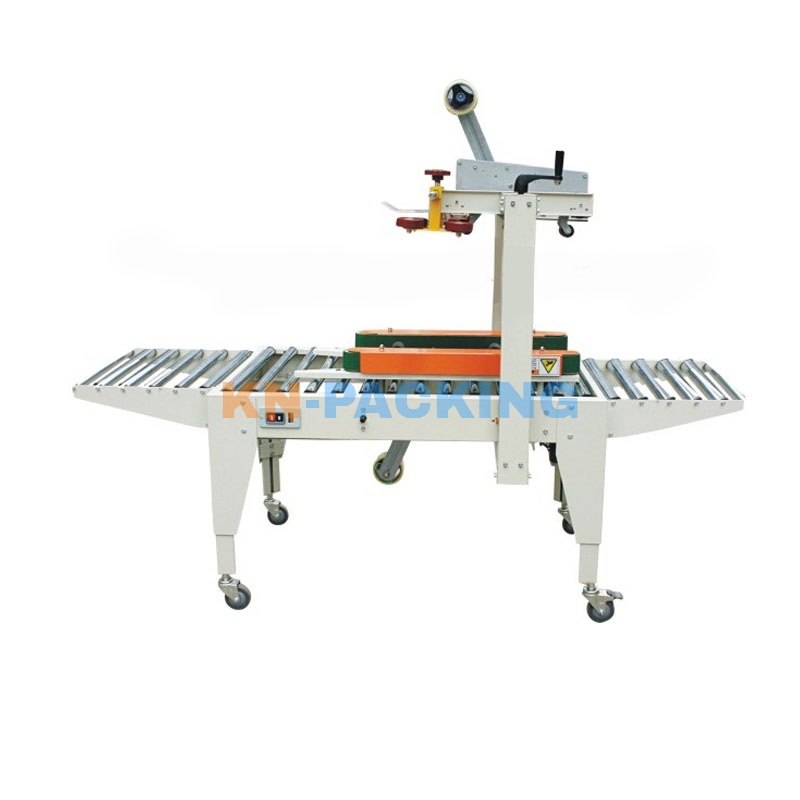

FXJ5050B carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line. Conveyor belt is mounted in left & right side. Carton is transmitted by two side’s conveyor belts. Adjust sealing height and width by hand according to the size of carton, then put carton on worktable, and carton will be transmitted through and sealed with tape automatically at the same time.
รายละเอียดทางเทคนิค
Model | FXJ5050B |
Sealing capacity | 1,000 cases per hour |
Adhesive tape used | BOPP, PVC adhesive tape |
Width of adhesive tape | 36, 48, 60, mm |
Power sources | 220V, 50Hz, 180W |
Max. sealing dimensions (W*H) | 500* 500mm |
Min. sealing dimensions (W*H) | 120*110mm |
wieght | 120Kg. |
