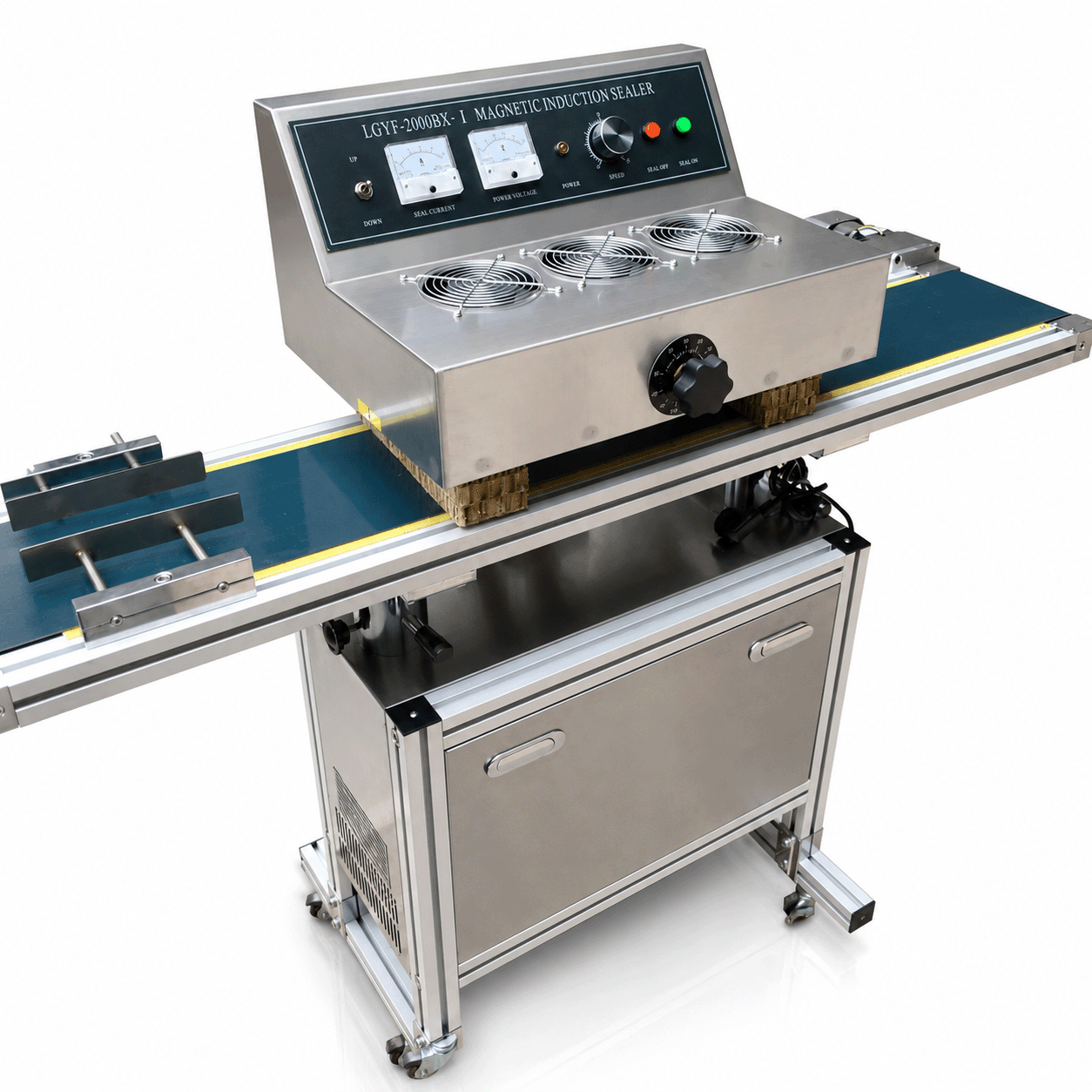

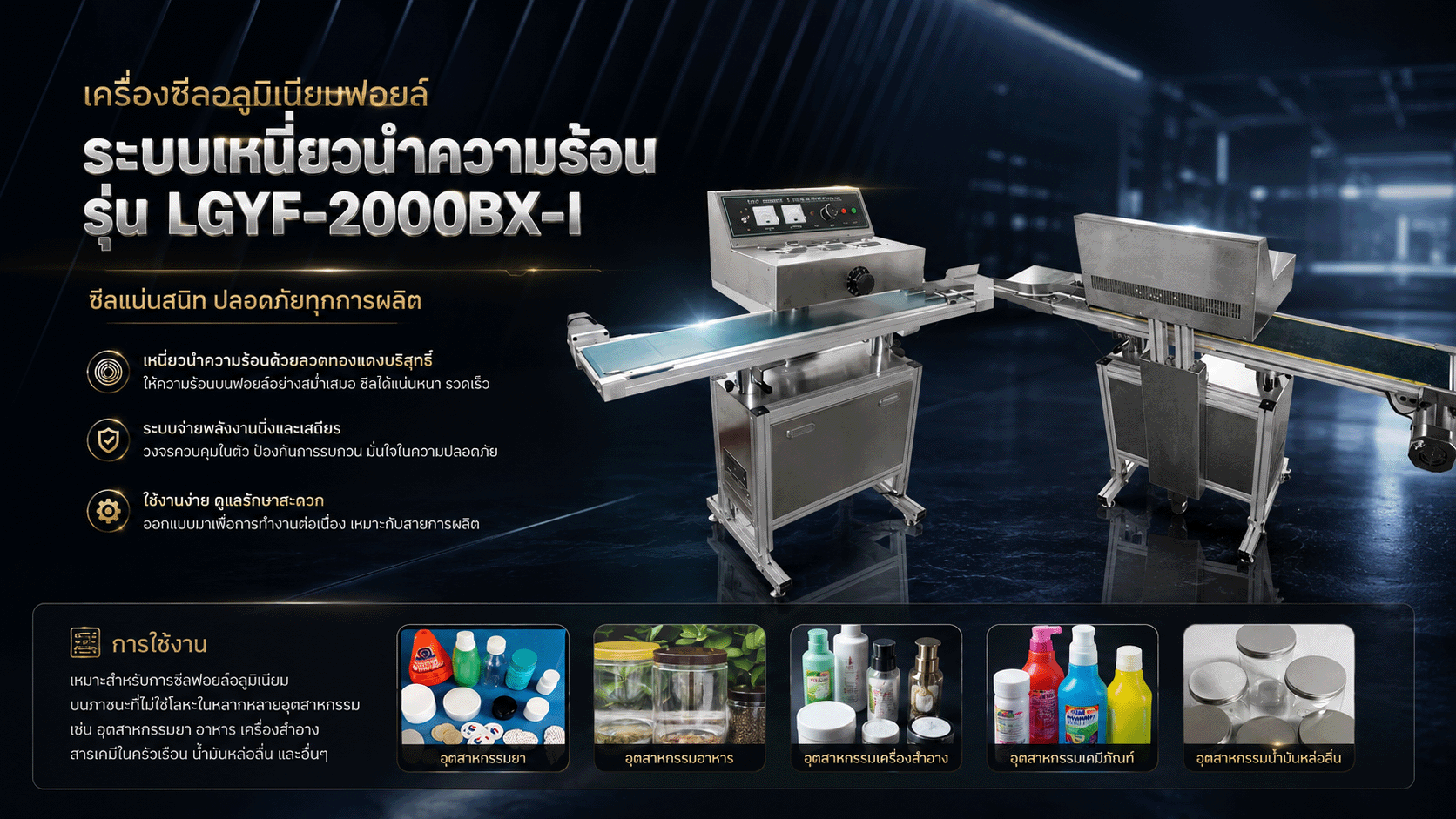

This is automatic electromagnetic induction heating equipment. It is mainly used to seal containers with aluminum foil for pharmacy, chemical industry, pesticide, food, cosmetic, light industry, etc.
Features
- Wind Cooling System;
- Stainless Steel Construction;
- Simple installation, high sealing speed, and steady performance;
- Self-checking & self-protection function;
- Allowance of different sizes of coils with the adjustment of tap selector switch;
- Suit for different materials and sizes of the bottle with the adjustment of the power switch;
- The adjustable height of the induction head makes it applicable for different production lines;
- Voltage stabilization system;

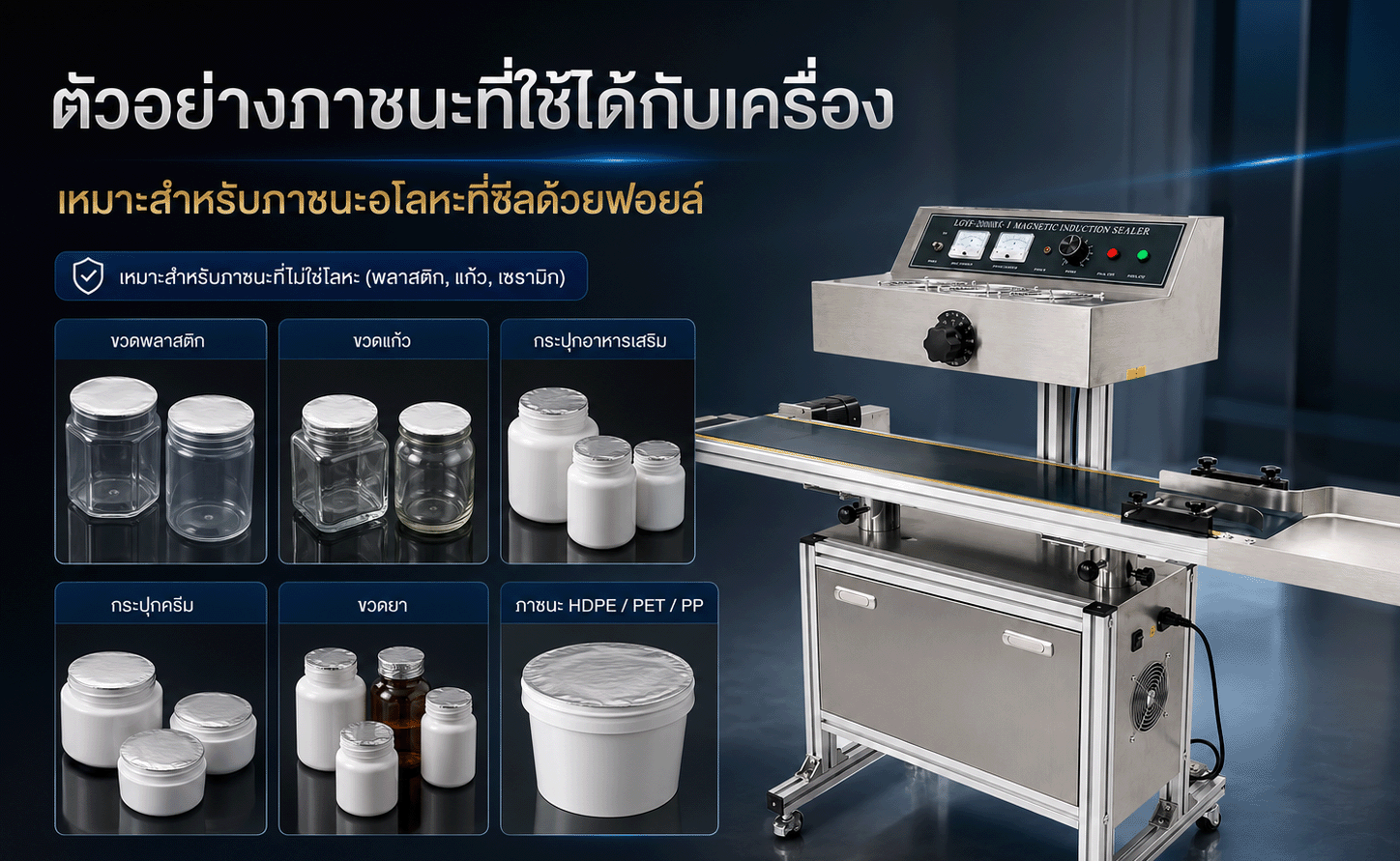

- Suit for plastic (PP, PET, HDPE, PVC, PS etc.) and glass containers, except metal containers
|
Mode |
LGYF-2000BX |
|
Supply voltage |
220V 50/60HZ |
|
Power |
2KW |
|
Working current |
≤9A |
|
Control circuit |
transistor digital circuit |
|
Working mode |
continuous conveying |
|
Cooling method |
fan cooling |
|
Conveyor speed |
0-12m/min |
|
Bottle height |
40-400mm |
|
Sealing diameter |
20-130 mm |
|
Chassis material |
stainless steel & aluminum |
|
Size |
1550*550*1350mm |
|
Weight |
72kg |
