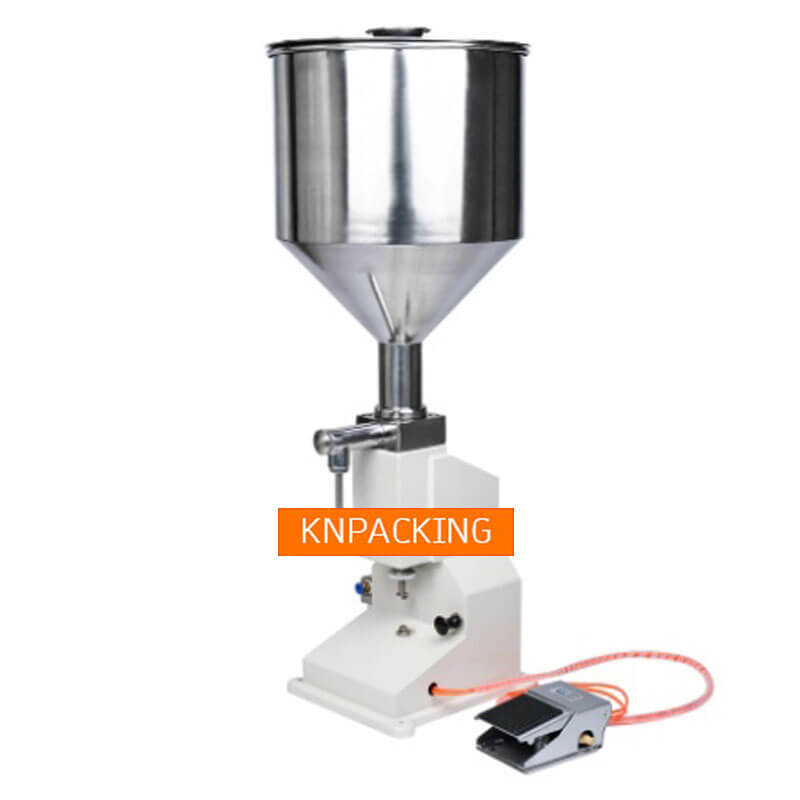

A02 type manual paste and liquid filler adopt piston structure, it can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food,lubricating oil, shampoo, cosmetic and so on.
It used widely in the field of pharmaceutical,cosmetic, food, pesticide and special field.It can also fill into tube sealed
The filler is ideal paste and liquid filler
This machine structure is simple and reasonable, manual easy operation, without any energy.
Equipped with filling quantity adjusting device knob, quantitative filling, quantitative filling and filling speed all can manually control.
The manual filling machine is specially designed by our factory for medium or small size enterprises,laboratory,
hospital or beauty parlor in daily use chemical section. Its configuration is compact,acts agility and easy to use,
all the parts which dip in the material are made of stainless steel
|Model||A02 Manual paste-liquid filling machine|
|Material of machine||Stainless steel 304|
|Filling Range||5-50 ml|
|Air compressor request||0.4-0.6Mpa , small air compressor is okay|
|Capacity of tank||10kg|
|Filling speed||20-60times/mins based on water operate|
|Net weight||11 kg|
|Machine size||270x270x700 mm|
