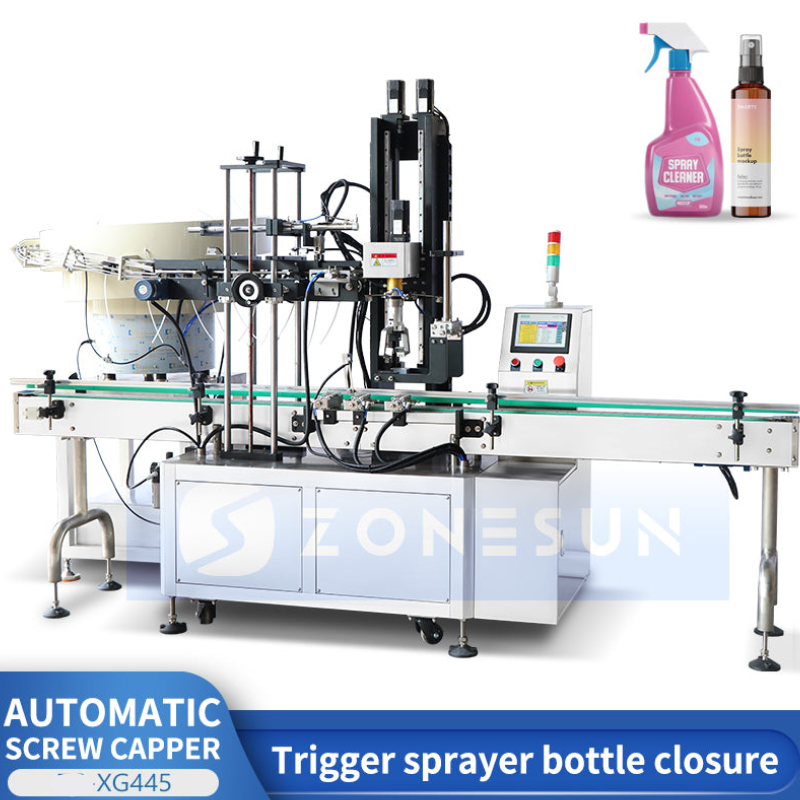

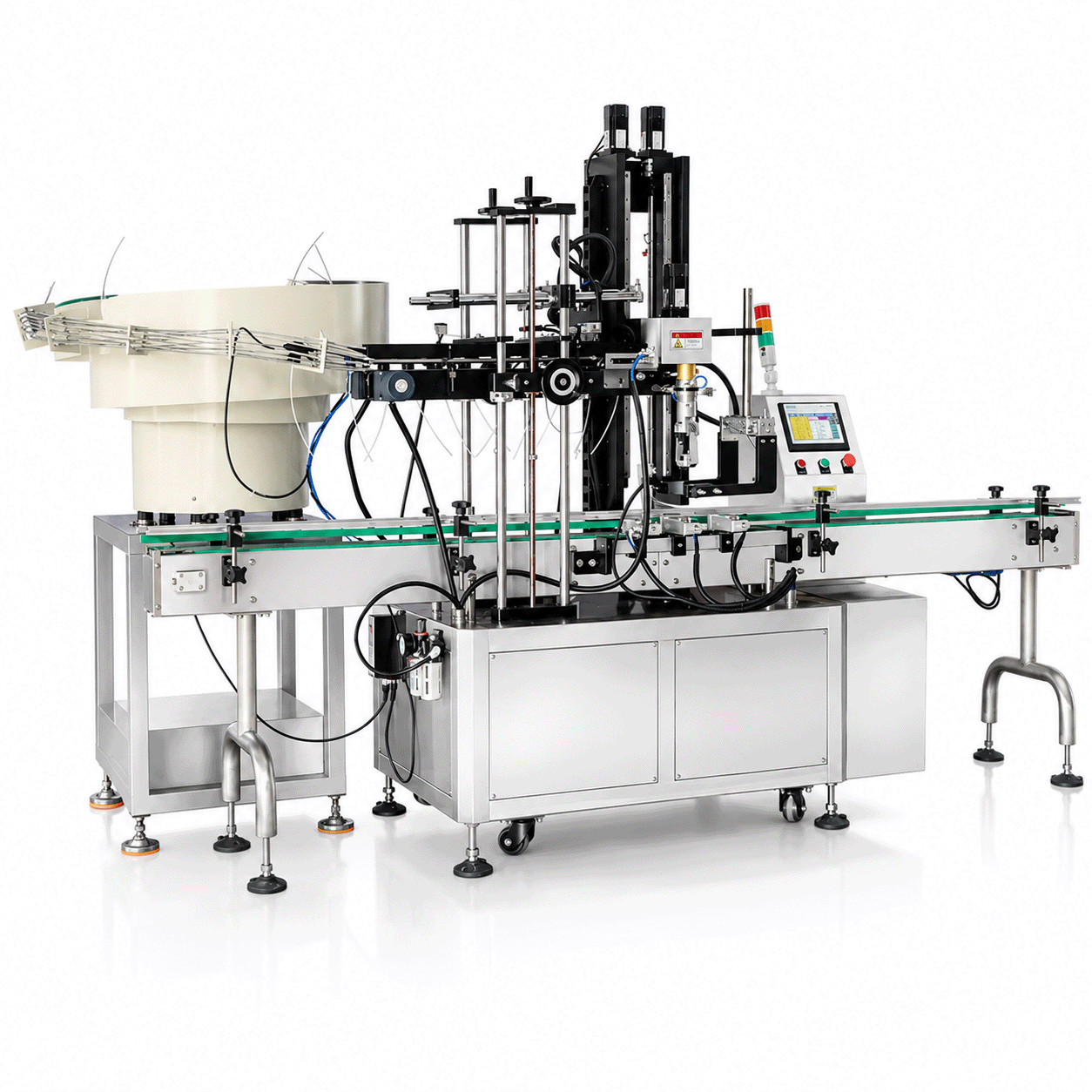

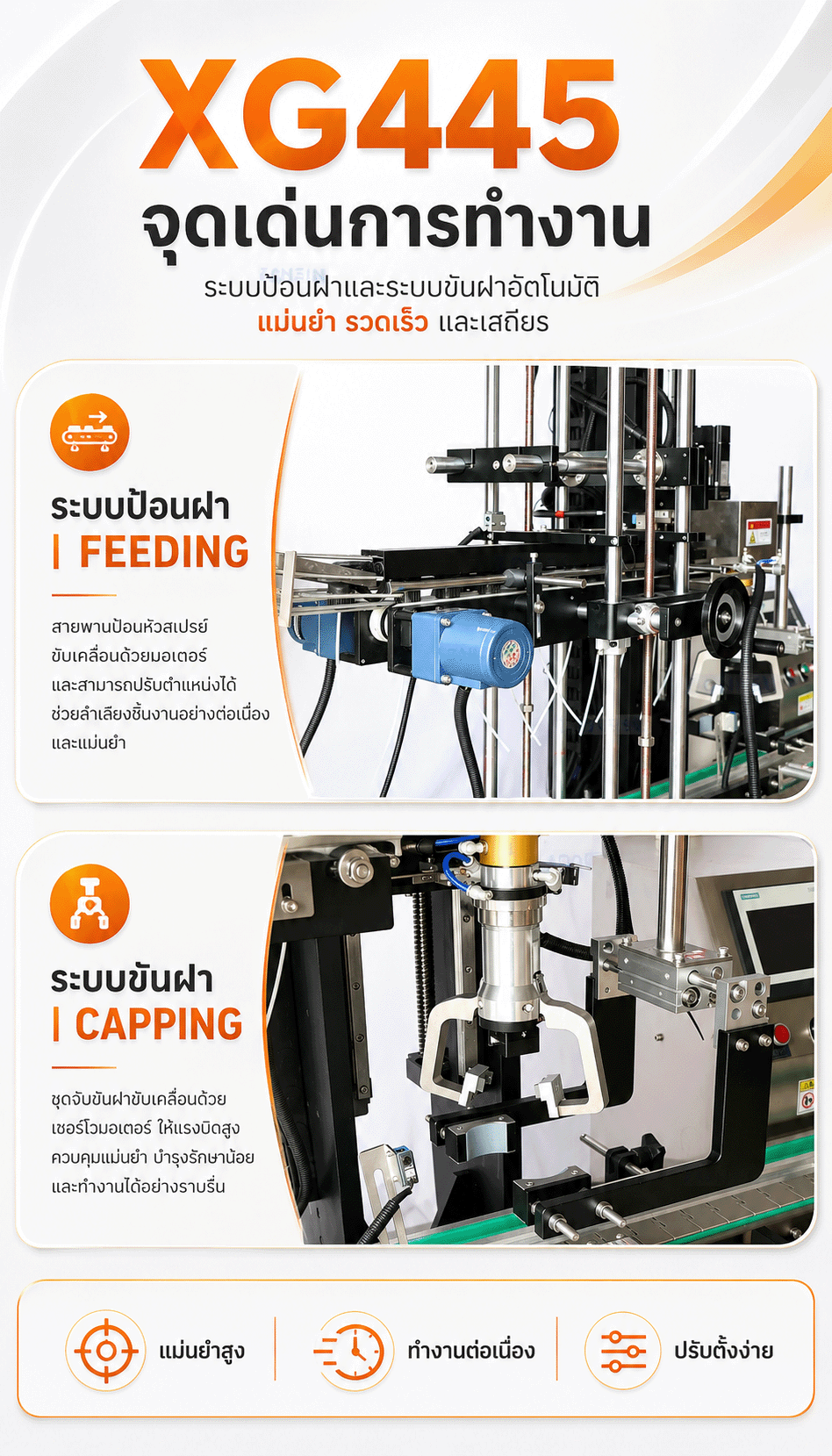

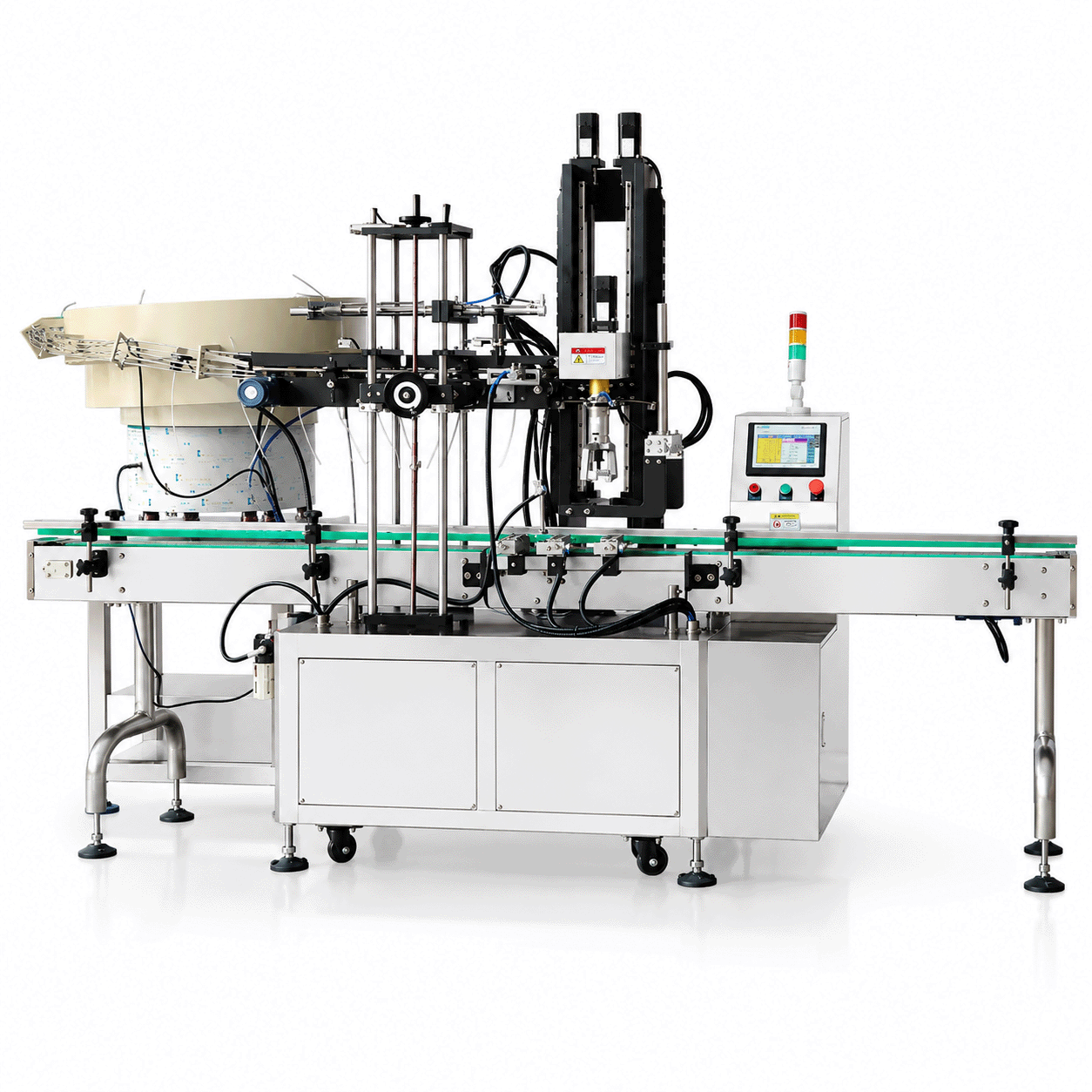

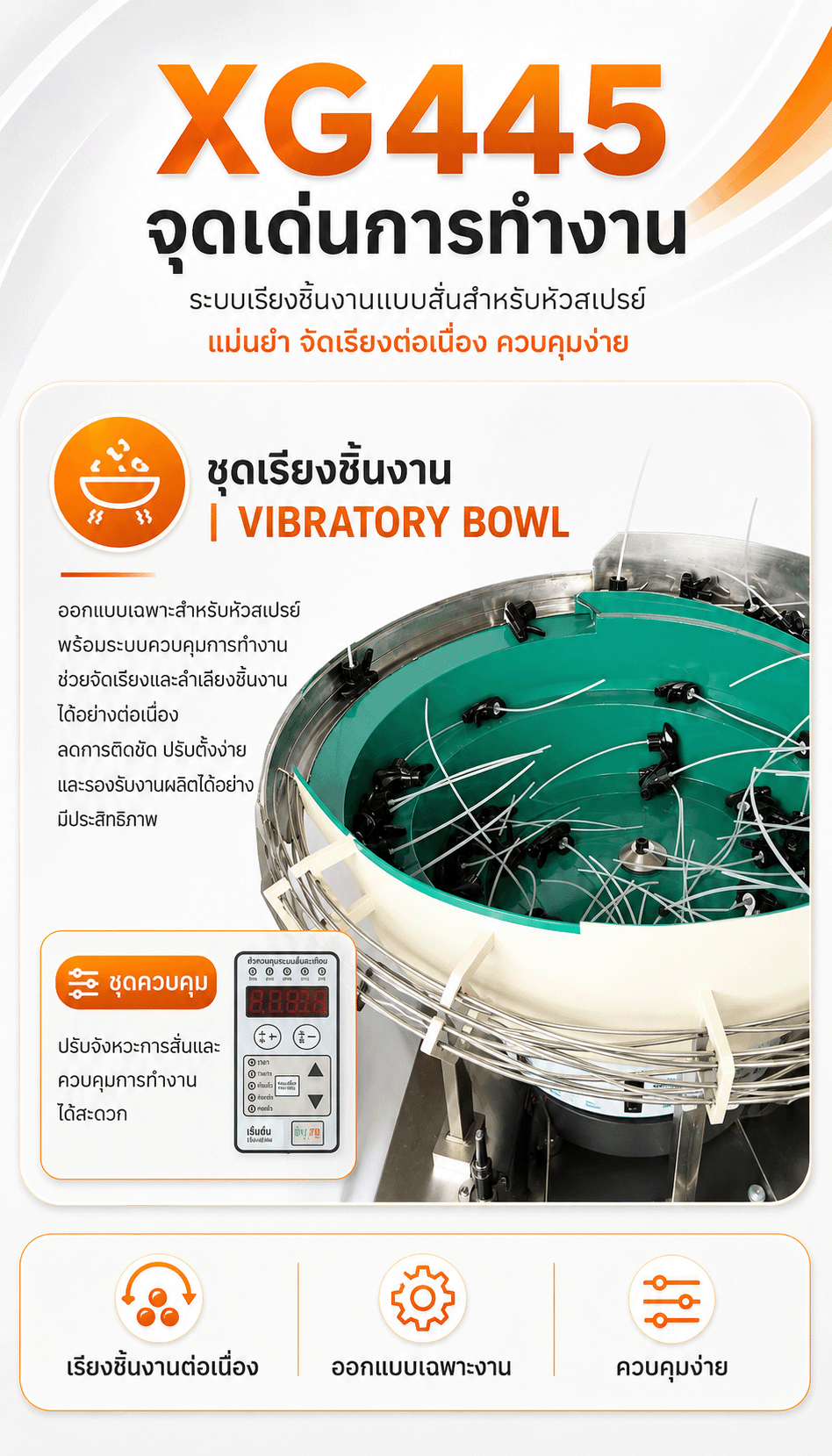

This is an automatic bottle capping machine for trigger spray bottles. The vibratory bowl feeder sorts the trigger sprayers and aligns them for the capping process. It uses a servo motor-driven gripper to screw the trigger sprayer onto the bottle with precise control and accuracy, giving each bottle a tight seal.
PARAMETER
Machine Model | XG445 |
Voltage | 110/220V |
Power | 900W |
Capacity | 5-25 bottles/min (based on bottle and cap size) |
Material | SUS 304 |
Air Pressure | 0.6-0.8Mpa |
Suitable Bottles | According to the sample |
Cap Feeding Way | Pneumatic fetch |
Capping Way | Servo motor driven screwing |
Machine Size | About 2900*950*2000mm |
Packaging Size | About 3020*905*2140mm (machine), 1870*1220*840mm (Vibratory bowl sorter) |
Packaging Weight | About 600kg(machine), 316kg (Vibratory bowl sorter) |
