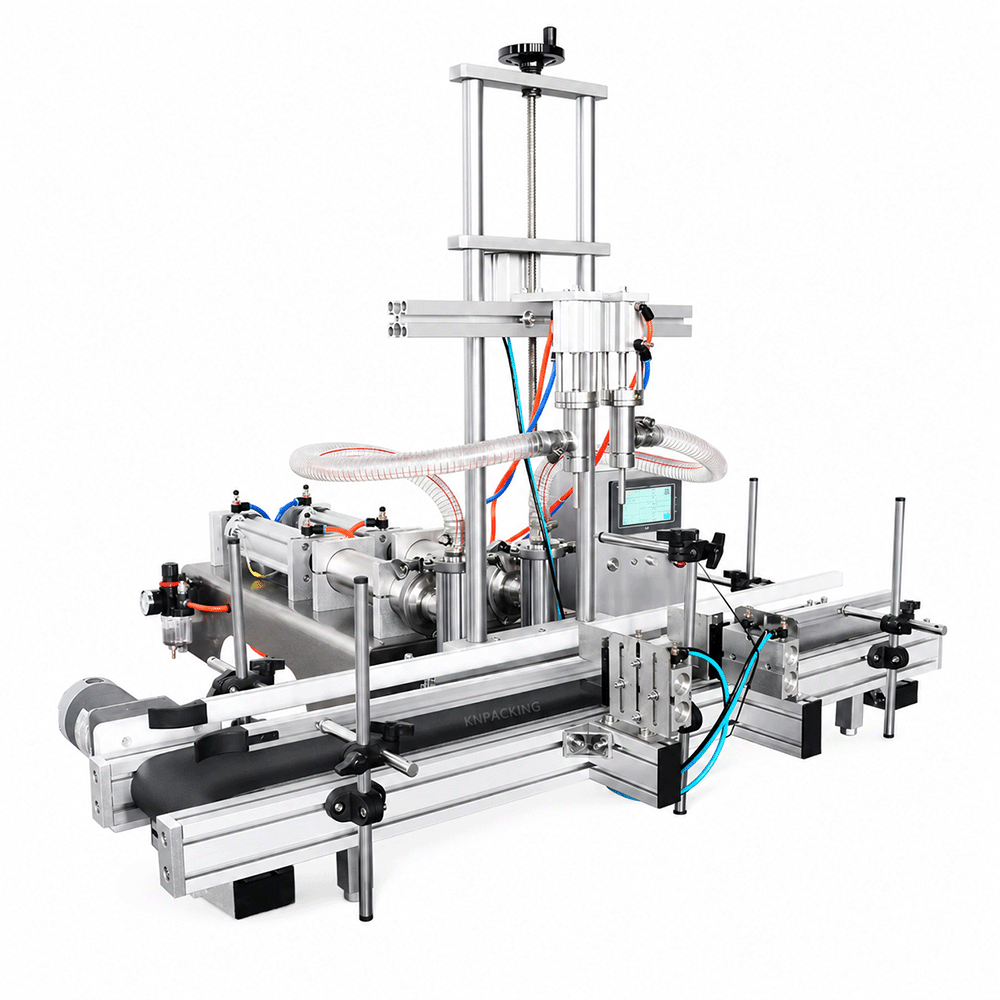

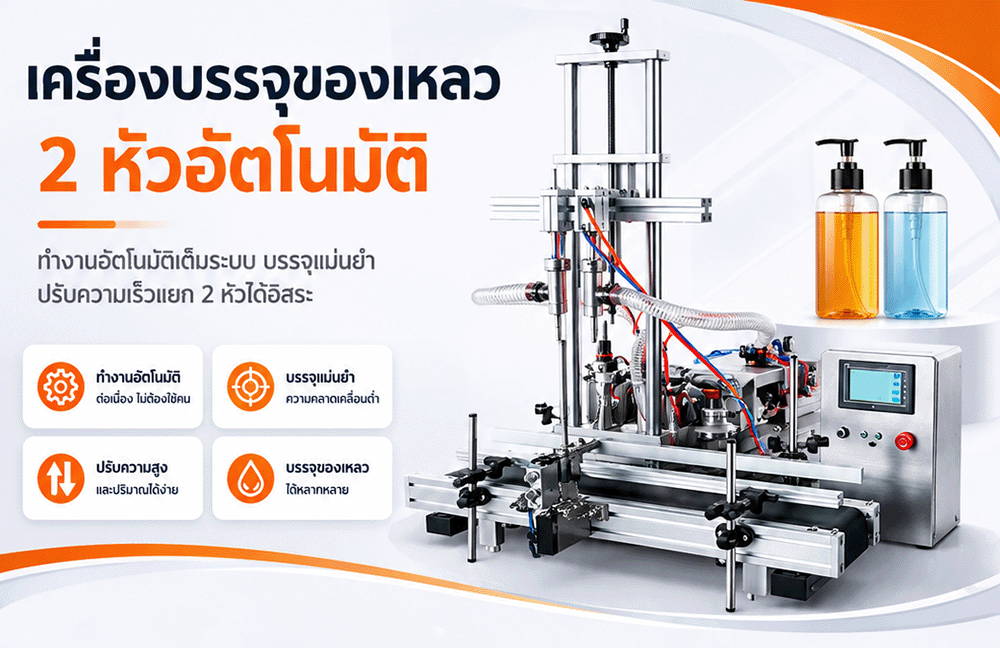

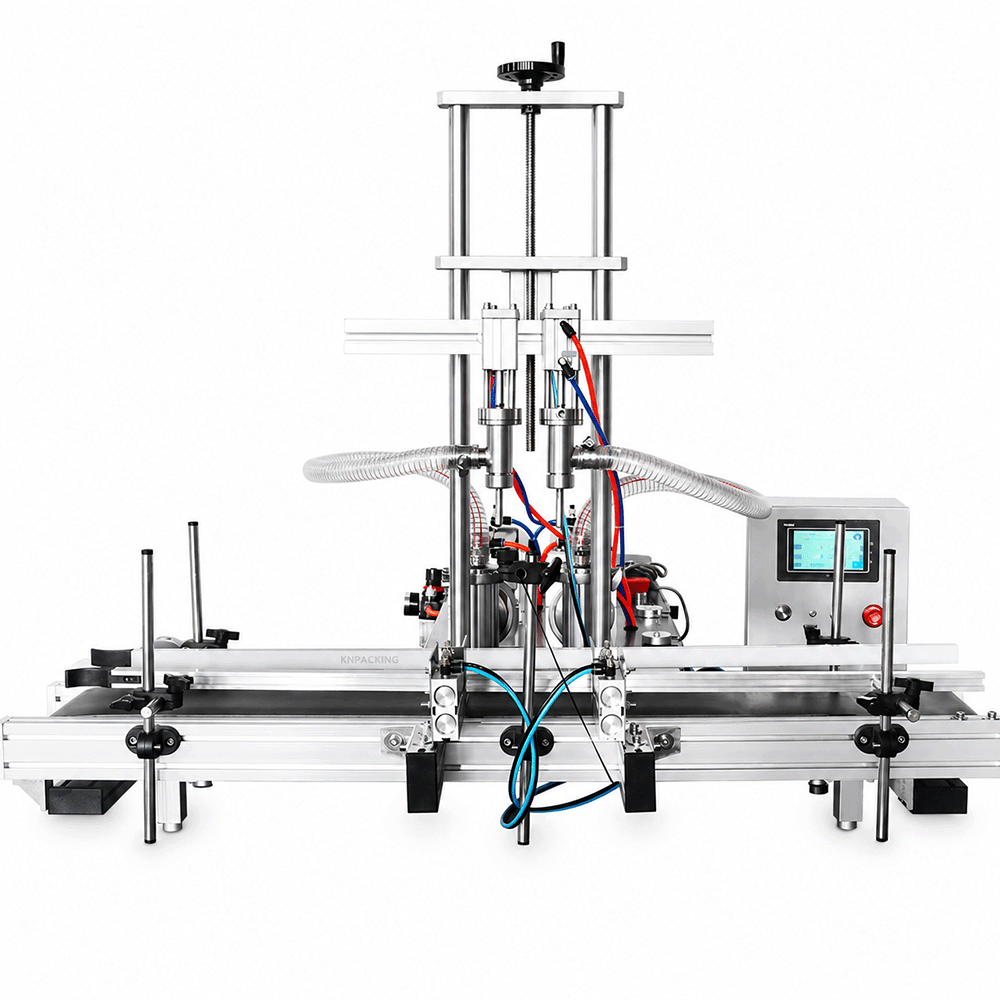

Equipped with piston pumps, this machine is suitable for filling thin and thick liquid like shampoo, engine oil, laundry detergent, and jam. It is a modular design with a filler and a conveyor. And customization is available.

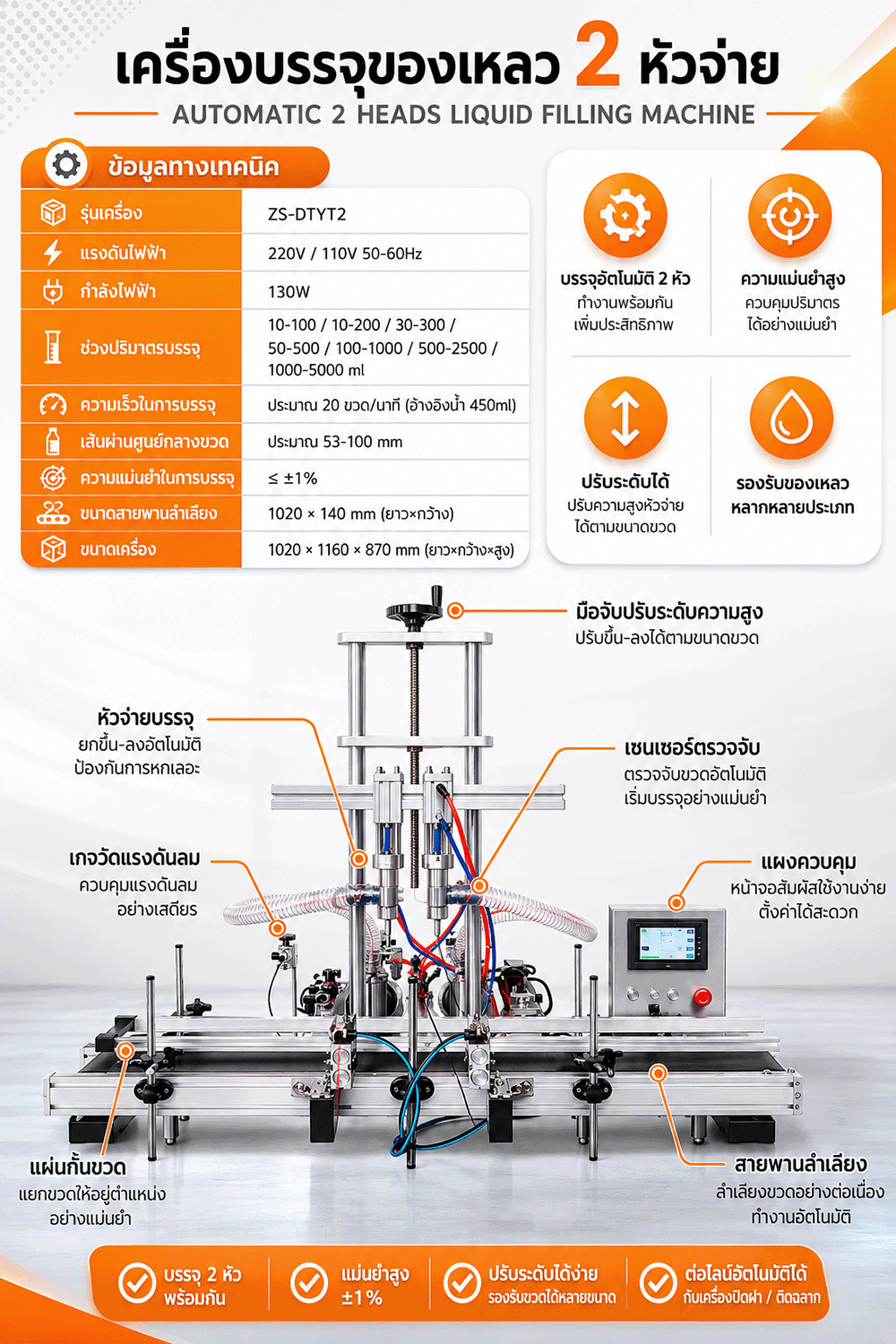

PARAMETER
Machine Model | DTYT2 |
Voltage | 220V/110V 50-60Hz |
Power | 130W |
Filling Range | 10-100/10-200/30-300/50-500/100-1000/500-2500/1000-5000ml |
Filling Speed | About 20 bottles/min(based on 450ml water) |
Applicable Bottle Diameter | About 53-100mm |
Filling Accuracy | ≤±1% |
Conveyor Belt Size | 1020*140mm(L*W) |
Machine Size | 1020*1160*870mm(L*W*H) |
