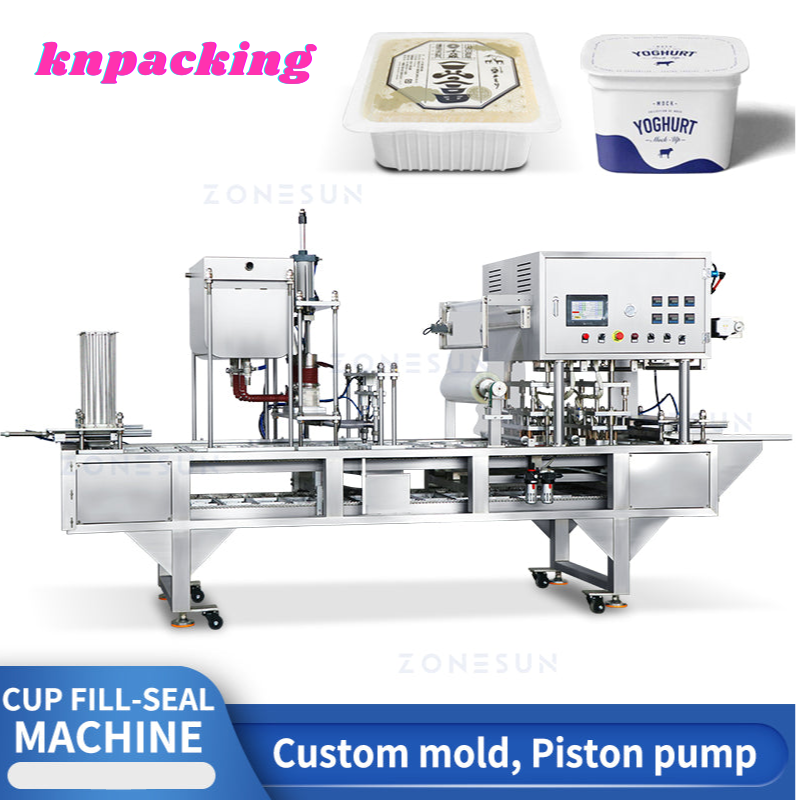

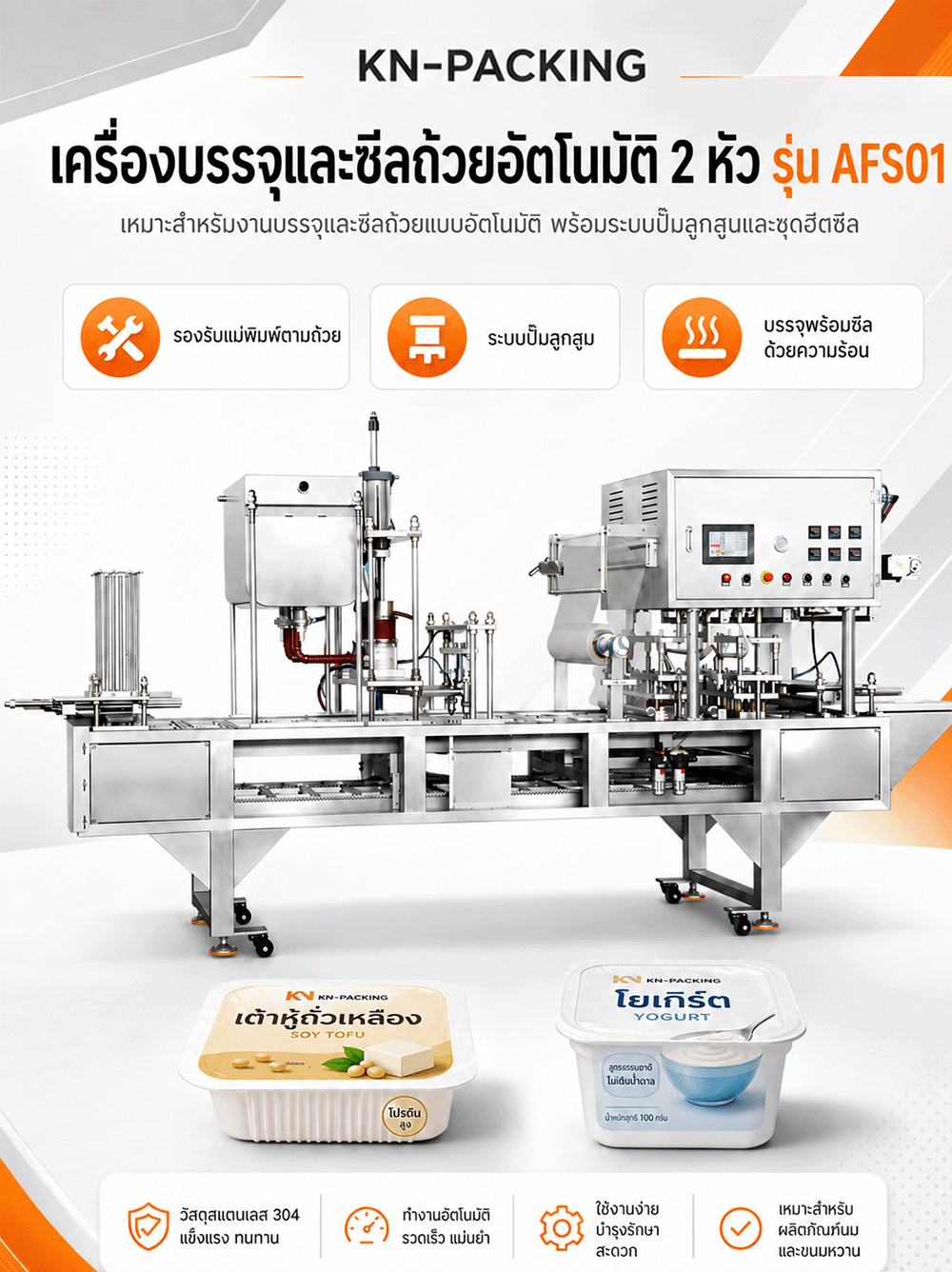

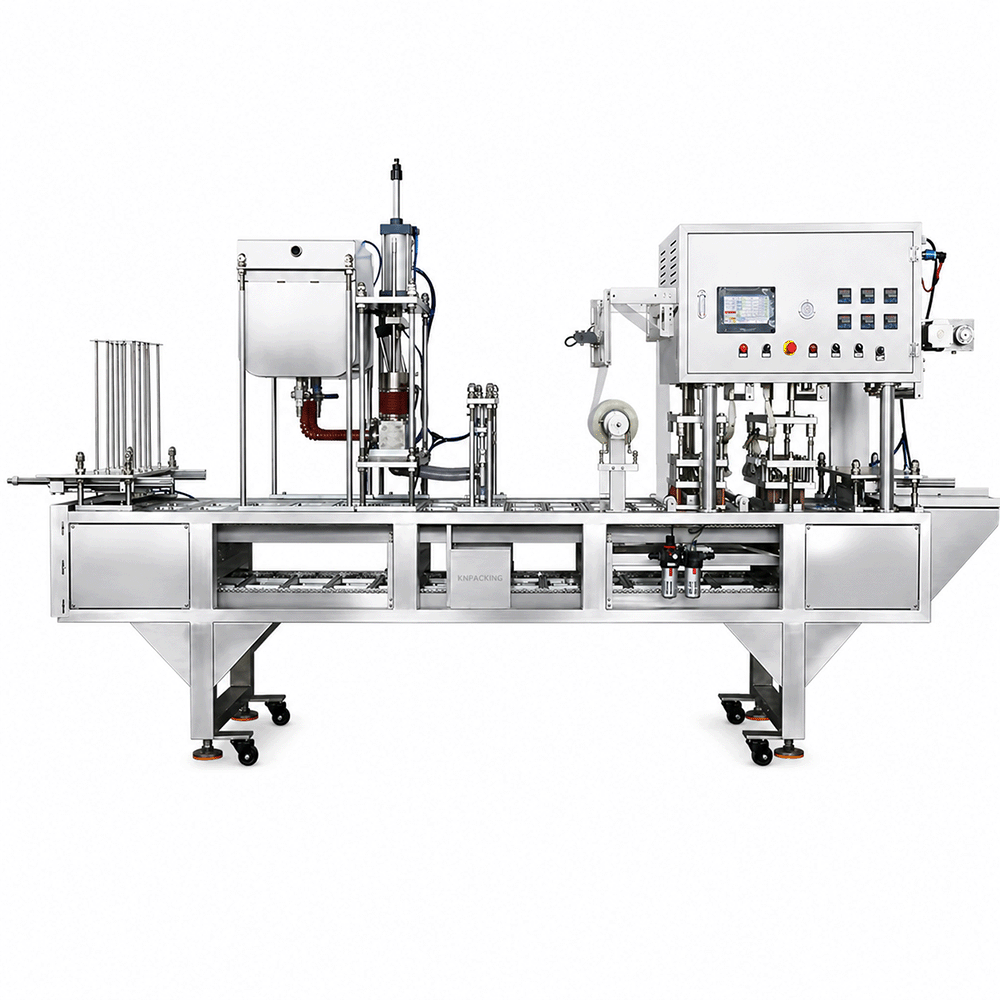

AFS01 Automatic 2 Nozzles Piston Pump Liquid Heating Filling Cup Sealing Machine

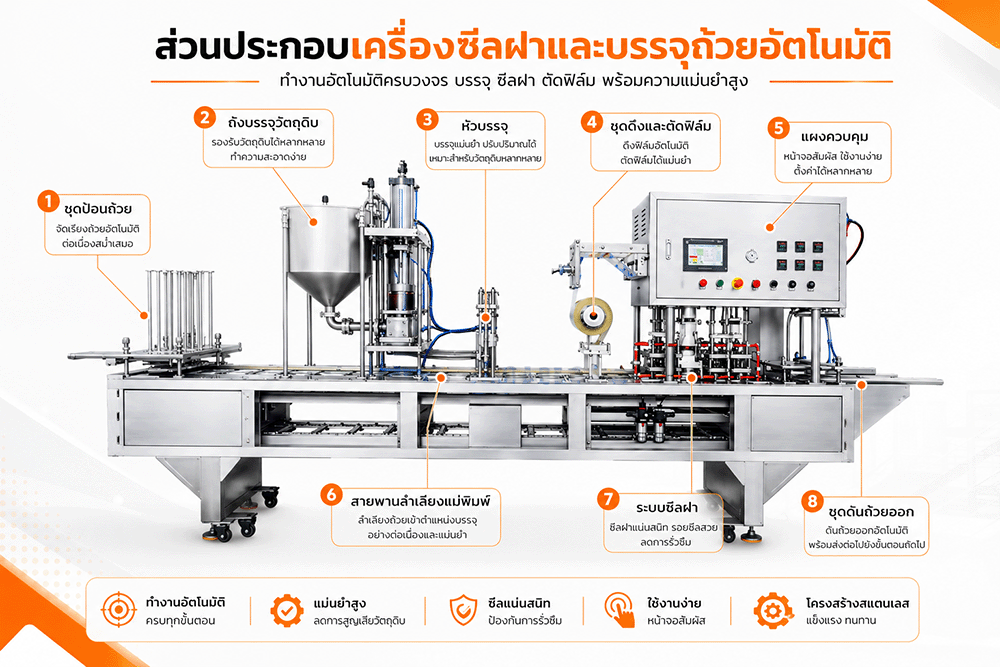

This is a custom machine for a buyer from America. It is used to fill paraffin wax into cups and seal them. It adopts a mold conveyor to transport the cups and cyclic heating for filling. Whatever your packaging needs are

PARAMETER
Model    AFS01
Power    about 8KW
Voltage   380V/50hz
Filling pump Piston Pump
Filling heads quantity 2
Working speed  About 10-30pieces/min (Based on liquid and filling volume)
Air consumption  0.7 m³/min
Machine size About 3600*968*1595mm
Package weight  About 1000kg

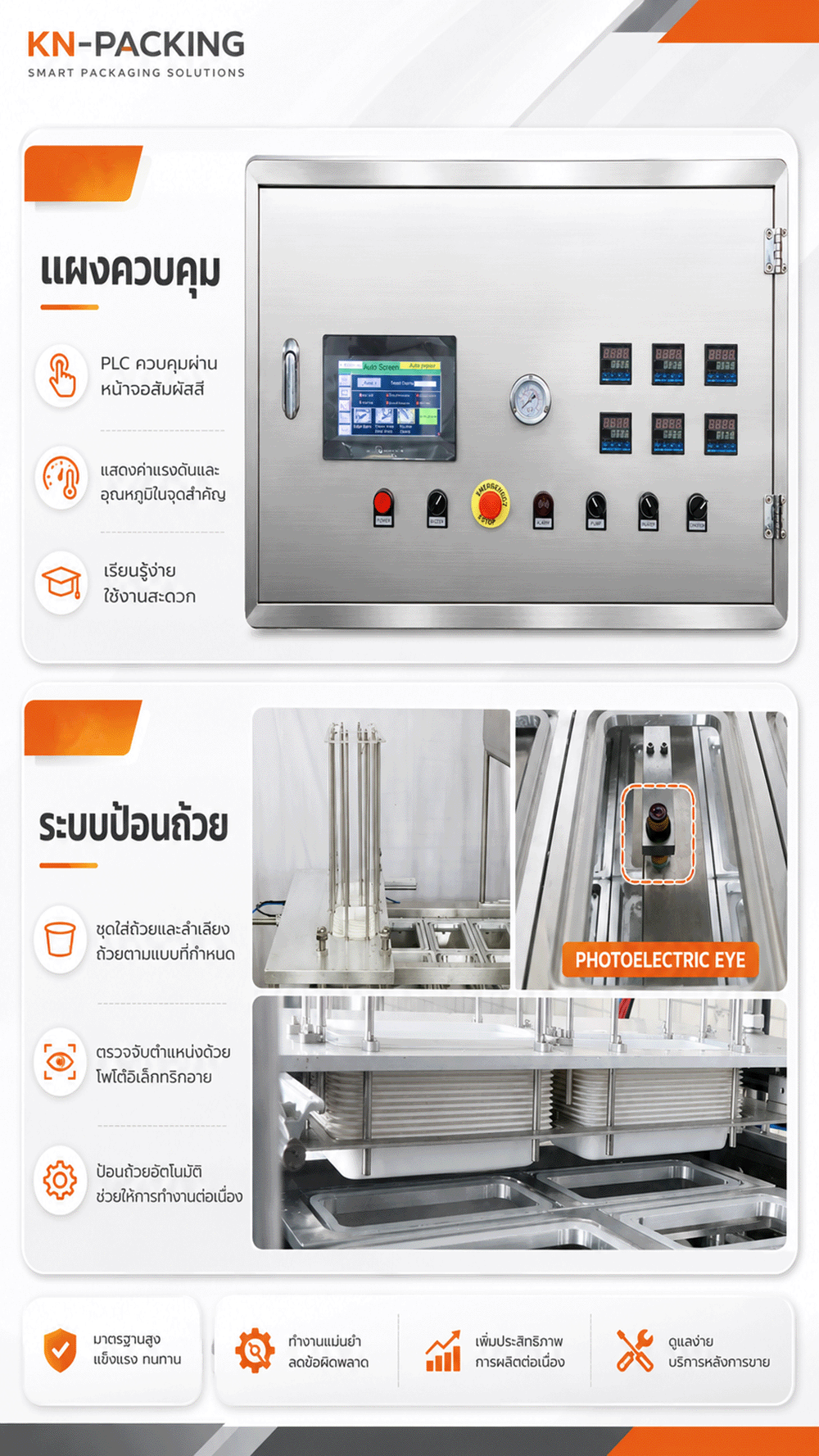

CONTROL PANEL
PLC controls, color display touchscreen.
Barometer and thermostats, all-in-one.
Easy learning and user-friendly.

CUP FEEDING

Custom holder, mold conveyor design.
Smart detecting, auto feeding.

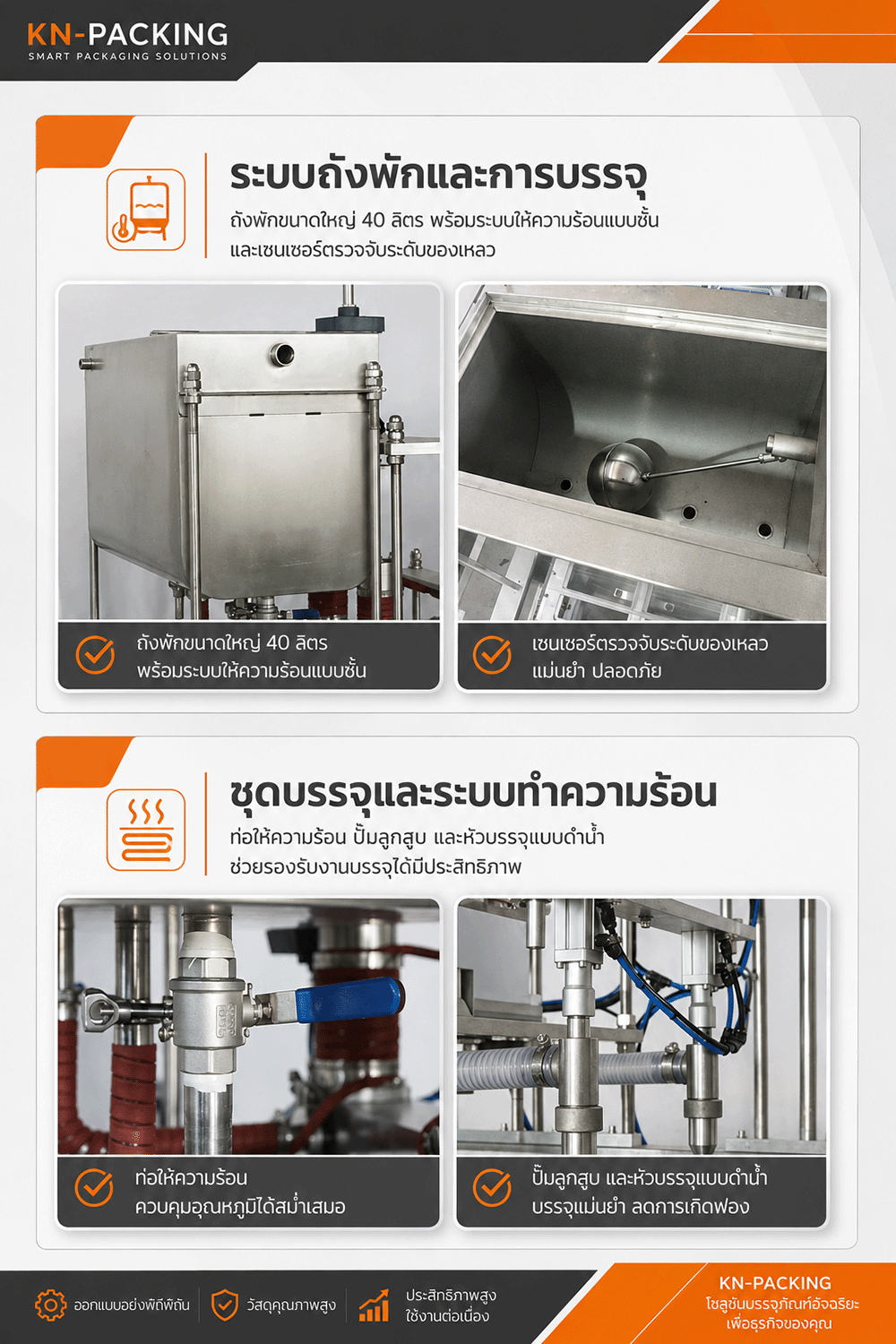

FILLING
Large hopper of 40L, interlayer heating, with a liquid level detector.
Heating wires, piston pump, diving nozzles.

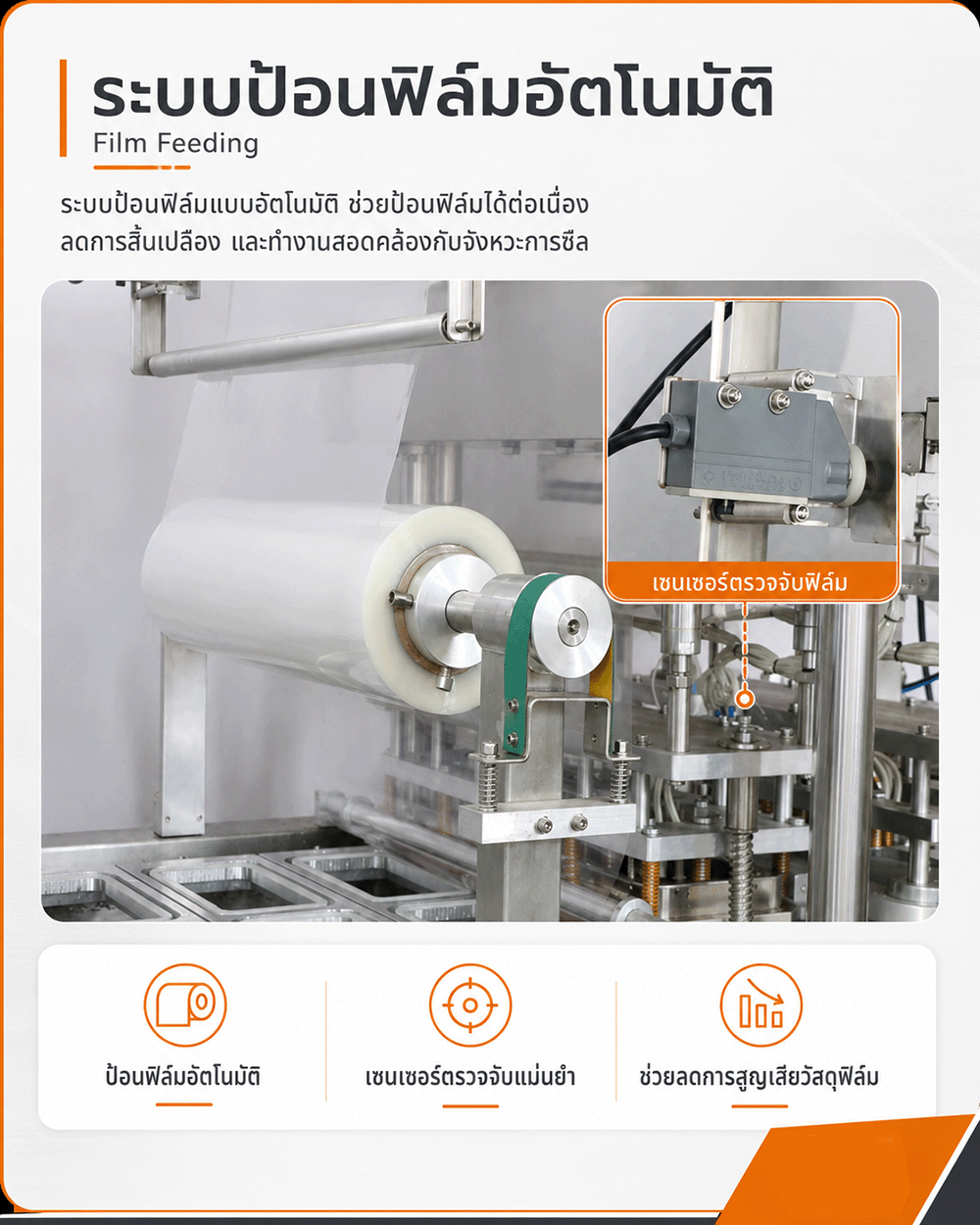

FILM FEEDING
Auto-feeding, smart sensor, no waste of the film.

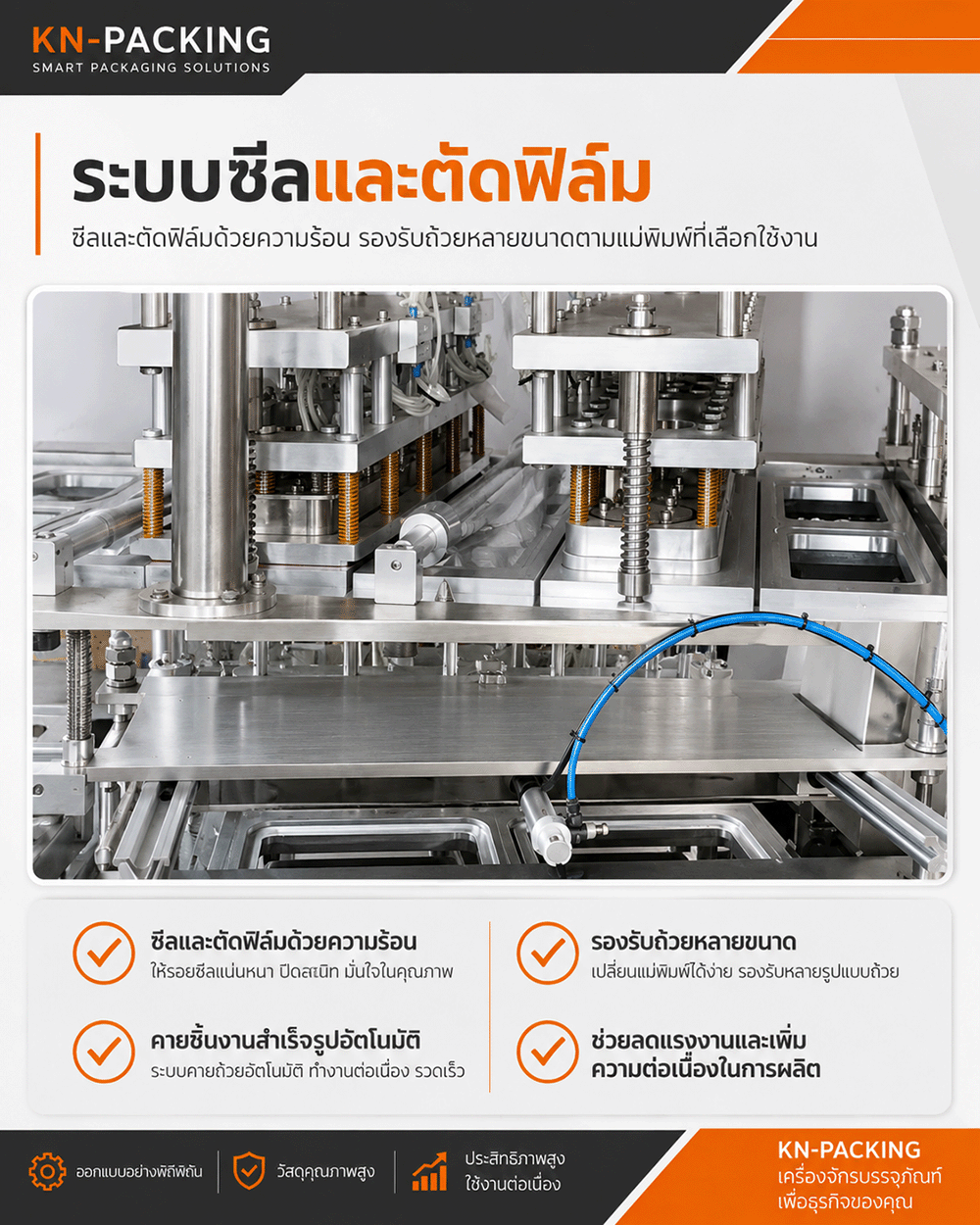

SEALING
Heat sealing and cutting, customizable for cups of different sizes.
Auto-erecting the finished products, labor-saving.
